S
Speed
20–60 bottles/min
Automatic Series

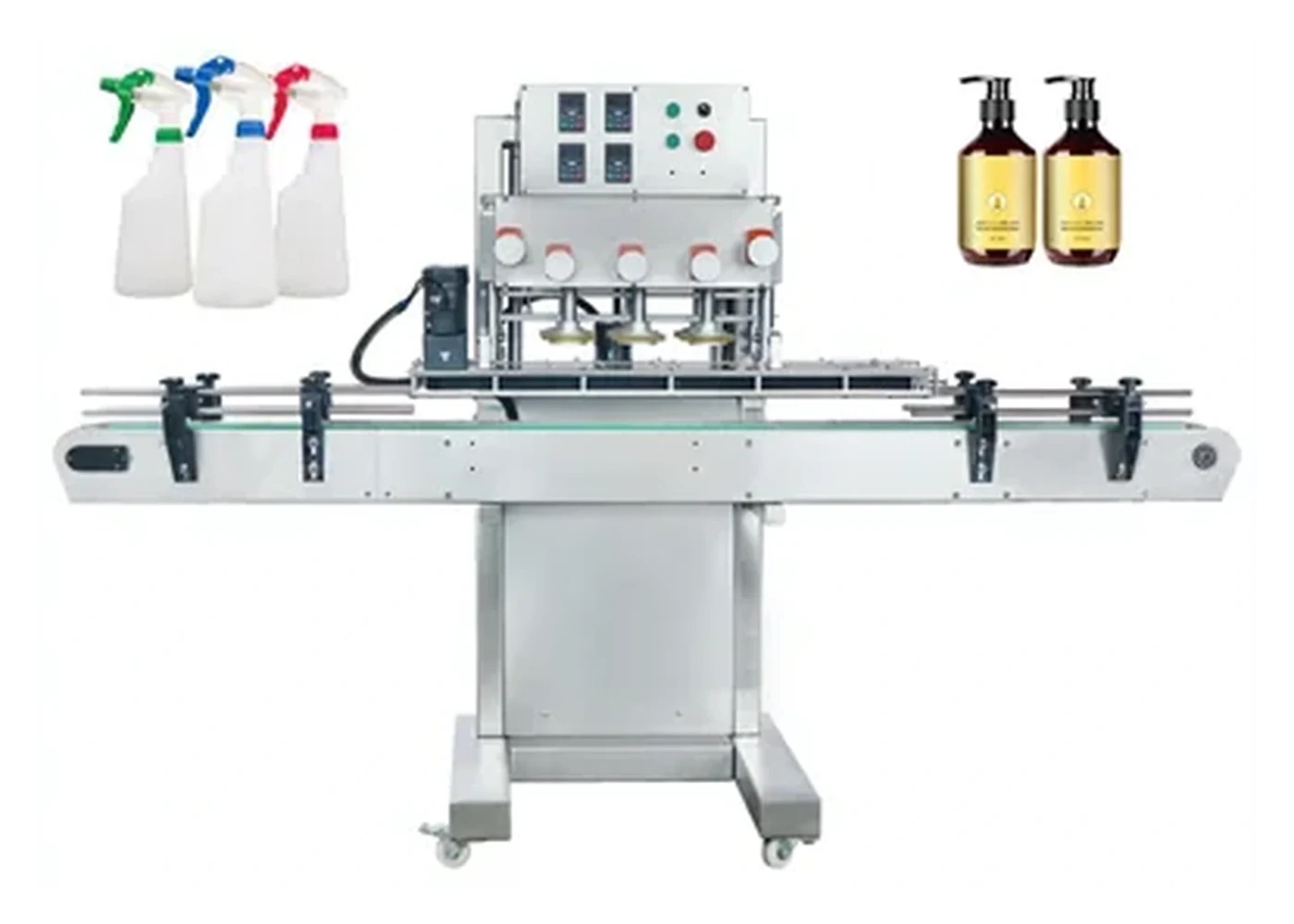

Automatic Screw Capping Machine for Sprays, Pumps & Screw Caps
A pneumatic inline automatic screw capping machine for production lines that need a stronger balance of throughput, repeatability and flexibility. It handles screw caps, spray caps and pump caps with adjustable guides and stable torque control.
Machine overview
Specification route
Inline automatic capping machine for spray bottles, pump closures and general screw caps.
C
Cap range
18–70 mm caps
B
Bottle range
20–160 mm bottle diameter
Key features
✓
Inline capping system
Designed for continuous production after filling and before labelling.
✓
Adjustable fixtures
Guides and clamps adapt to different bottle styles.
✓
Photoelectric control
Automates start/stop and improves consistency.
✓
Feeding options
Can integrate with a bowl or elevator where required.
Technical specifications
| Model | LU-XG16 class |
|---|---|
| Working voltage | AC 220/110 V, 50–60 Hz |
| Bottle height | 30–300 mm |
| Cap diameter | 18–70 mm |
| Bottle diameter | 20–160 mm |
| Working speed | 20–60 bottles/min |
| Working pressure | 0.4–0.6 MPa |
| Dimension | Approx. 1930 × 740 × 1600 mm |
| Machine weight | Approx. 150 kg |
| Feeding | Cap bowl or elevator optional |
Final configuration, speed and tooling should be confirmed against real bottle and cap samples. Trial results may affect the exact quote, footprint and lead time.
Typical applications
- Spray and pump bottle lines
- Cosmetics, personal care and toiletries
- Household liquids, oils and chemicals
What is normally included
- Automatic pneumatic capper base
- Guides and bottle clamping fixtures
- Touchscreen control
- Operation and maintenance manual
Gallery
Alternative machine images
Only different machine visuals are shown here so the page does not repeat the same product photograph.
